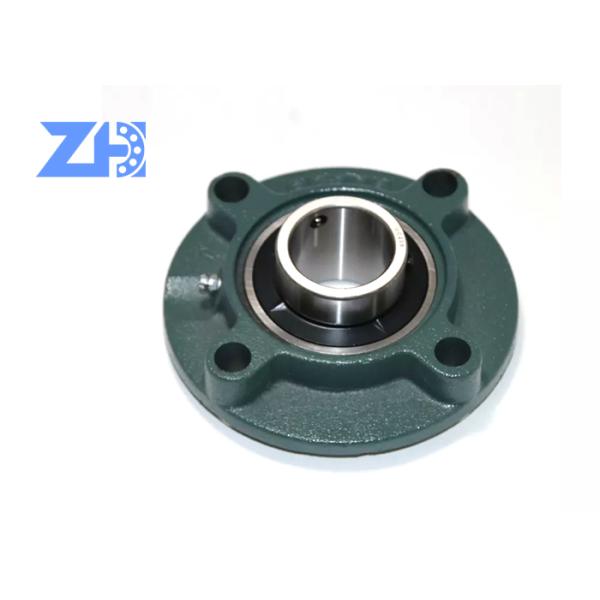

UCFC206 Pillow Ball Bearing Unit UCFC 206 Pillow Block Insert Bearing V4

Name: UCFC206 Pillow Ball Bearing Unit UCFC 206 Pillow Block Insert Bearing V4
Brand: QIEAL ZH
Price: 1 USD

Wholesale UCFC206 Pillow Ball Bearing Unit UCFC 206 Pillow Block Insert Bearing V4 from china suppliers

Model Number : Bearing UCFC206

Place of Origin : CHINA

MOQ : 2 sets

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 pieces/month

Packaging Details : Box packing

Delivery Time : 2-5 days

Brand Name : QIEAL ZH

Certifiexcavatorion : ISO-9001

Type : Pillow Block

Applicable Industries : Garment Shops, Building Material Shops, Manufacturi

Material : Chrome Steel

Feature : Long Life

Lubriexcavatorion : Oil Grease

Product name : Pillow Bloock Bearing

Appliexcavatorion : Agricultural Machinery

Vibration : V1 V2 V3 V4

Service : OEM Customized Services

Contact Now

Pillow Block Insert Bearing UCFC206 Bearing Unit Pillow Ball Bearing UCFC 206

Product Description

Structure	Pillow block bearing
Brand name	WST
Quality standard	ISO9001:2008
Services	OEM Based on your Aboriginal
Delivery time	5-20 days
Bearing package	Roll ,box ,carton ,pallet
Payment term	L/C ,T/T
Material	Chromium steel (main), carbon steel, stainless steel, ceramic

Pillow block bearing are particularly versatile. They are simple in design, non-separable, suitable for high and even very high speeds and are robust in operation, requiring little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads, even at high speeds.

UCFC206 Pillow Ball Bearing Unit UCFC 206 Pillow Block Insert Bearing V4

Type	Dimensions (mm)													Weight
	d	a	p	and	l	S	k	g	f	FROM	With a	n	ds	(kg)
UCFC201	12	100	78	55,1	25,5	12	7	20,5	62	28,3	31	12,7	M10	0,78
UCFC202	15	100	78	55,1	25,5	12	7	20,5	62	28,3	31	12,7	M10	0,78
UCFC203	17	100	78	55,1	25,5	12	7	20,5	62	28,3	31	12,7	M10	0,78
UCFC204	20	100	78	55,1	25,5	12	7	20,5	62	28,3	31	12,7	M10	0,78
UCFC205	25	115	90	63,6	27	12	7	twenty one	70	29,7	34	14,3	M10	0,95
UCFC206	30	125	100	70,7	31	12	8	twenty three	80	32,2	38,1	15,9	M10	1,4
UCFC207	35	135	110	77,8	34	14	9	26	90	36,4	42,9	17,5	M12	1,7
UCFC208	40	145	120	84,8	36	14	9	26	100	41,2	49,2	19	M12	2
UCFC209	45	160	132	93,3	38	16	14	26	105	40,2	49,2	19	M14	2,8
UCFC210	50	165	138	97,6	40	16	14	28	110	42,6	51,6	19	M14	3
UCFC211	55	185	150	106,1	43	19	15	31	125	46,4	55,6	22,2	M16	4
UCFC212	60	195	160	113,1	48	19	15	36	135	56,7	65,1	25,4	M16	4,7
UCFC213	65	205	170	120,2	50	19	15	36	145	55,7	65,1	25,4	M16	5,4
UCFC214	70	215	177	125,1	54	19	18	40	150	61,4	74,6	30,2	M16	6,8
UCFC215	75	220	184	130,1	56	19	18	40	160	62,5	77,8	33,3	M16	7,3
UCFC216	80	240	200	141,4	58	twenty three	18	42	170	67,3	82,6	33,3	M20	8,9
UCFC217	85	250	208	147,1	63	twenty three	20	45	180	69,6	85,7	34,1	M20	10,4
UCFC218	90	265	220	155,5	68	twenty three	20	50	190	78,3	96	39,7	M20	13

UCFC206 Pillow Ball Bearing Unit UCFC 206 Pillow Block Insert Bearing V4

UCFC206 Pillow Ball Bearing

V4 Pillow Ball Bearing

UCFC206 Pillow Ball Bearing Unit UCFC 206 Pillow Block Insert Bearing V4 Images
